| Keyboard: |
61 Standard-size keys, 5 octaves (with touch response; 1, 2, off) |

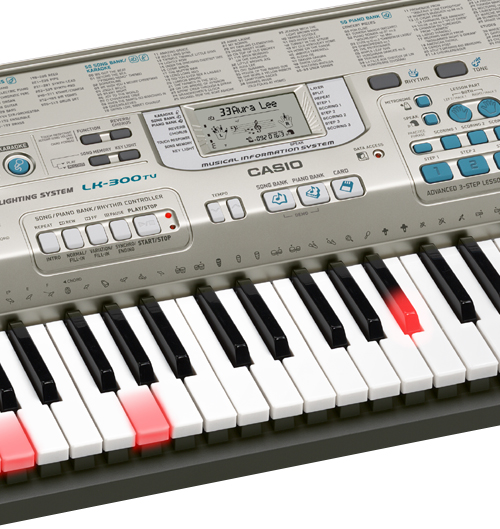

| Key Light System |
Can be turned on and off (up to 10 keys can be lit at the same time) |
| Tones: |
514 (372 panel tones + 128 General MIDI tones + 14 drum sets); with layer and split |
| Digital Effects |
Reverb (4 types), Chorus (4 types) |
| Polyphony: |
32 notes maximum (16 for certain tones) |
|
|
Rhythm Patterns: |
120 |
| Chords: |
3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD) |
| Rhythm Controller: |
START/STOP, INTRO, NORMAL/FILL-IN, VARIATION/FILL-IN, SYNCHRO/ENDING |
| Accomp Volume: |
0 to 127 (128 steps) |
| Advanced 3-step Lesson System |
3 lessons (Step 1, 2, 3) |
| Playback: |
Repeat play on a single tune |
| :Lesson Part: |
Left hand, right hand, both hands |
| Evaluation Mode: |
Scoring 1, Scoring 2, Scoring 3, Phrase Practice |
| Voice Fingering Guide: |
On/Off |
Song Bank, Piano Bank |
| Number of Tunes: |
100 (Song Bank/Karaoke 50, Piano Bank 35) |
| Controllers: |
PLAY/STOP, PAUSE, FF, REW, REPEAT |
| User Songs; |
Number of Songs: Up to 10 download songs
Capacity: Approximately 320 KB*
*Calculated based on 1 KB = 1024 bytes |
Karaoke Mode |
| Number of Tunes: |
Song Bank/Karaoke: 50 |
| Controllers: |
PLAY/STOP, PAUSE, FF, REW, REPEAT, KEY CONTROL (25 steps, - 12 semitones to + 12 semitones) |
| Metronome: |
On/Off |
| Beat Specifications: |
0, 2 to 6 |
Song Memory |
| Number of Songs: |
Two (1 Lesson Recording, 1 Performance Recording) |
| Recorded Data: |
Lesson Recording: Right-hand part, left-hand part, both-hand parts
Performance Recording: Track 1 (chord accompaniment), Track 2 (melody) |
| Recording Method: |
Real-time |
| Memory Capacity |
Approximately 5,200 notes (two songs) |
Other Functions |
| Tempo: |
Variable (226 steps, notes = 30 to 255) |
| Transpose: |
25 steps (-12 semitones to + 12 semitones) |
| Tuning: |
101 steps (A4 = approximately 440Hz +/-50Cents) |
Card |
| Supported Memory Cards: |
SD memory cards, optional Casio song data cards*
*May not be available in some geographic areas |
| Supported SD Cards: |
1 GB or less (Cards with capacity greater than 1 GB are not supported) |
| Maximum Number of Importable Songs: |
Up to 1,000 |
| Supported Data |
SMF Format 0, CASIO Original Format CM2 |
Terminals |
| SUSTAIN/ASSIGNABLE JACK: |
Standard jack (sustain, sostenuto, soft, rhythm start/stop) |
| PHONES/OUTPUT Jack: |
Stereo standard jack
Output Impedance: 100ohms
Output Voltage: 4.5V (RMS) MAX |
| Microphone In: |
Standard jack (with microphone volume knob)
Input impedance: 3K ohms
Input sensitivity: 10mV |
| USB port: |
Type B |

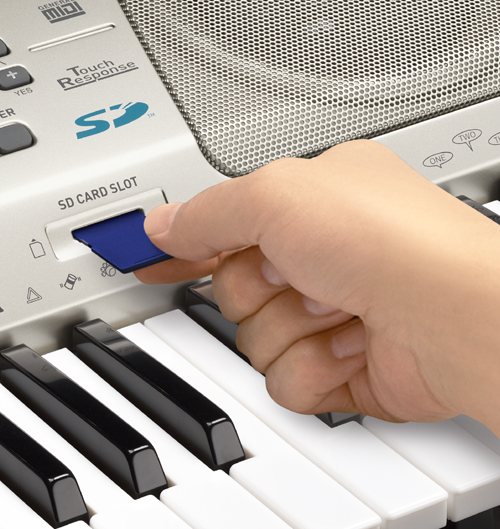

| SD CARD SLOT |
|
| Power Jack: |
9V DC |
| Power Supply |
2-way |
| Batteries: |
6 D-size batteries |
| Battery Life: |
Approximately 2.5 hours continuous operation on manganese batteries |
| AC Adaptor: |
AD-5 |
| Auto Power Off: |
Turns power off approximately 6 minutes after last key operation. Enabled under battery power only, can be disabled manually. |
| Speaker Output: |
2.5W + 2.5W |
| Power Consumption: |
9V...7.7W |
| Dimensions: |
96.0 x 37.5 x 14.6cm (37 13/16 x 14 3/4 x 5 3/4 inch) |
| Weight: |
Approximately 5.6kg (12.4 lbs) (without batteries) |
